zoomlion 30t truck crane machine /pickup truck crane

FOB Reference Price:Get Latest Price
US $10,000-15,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
LOADING AND UNLOADING
Rated Loading Capacity:
30 ton
Rated Lifting Moment:
1132kN.m
Max. Lifting Load:
30 ton
Max. Lifting Height:
49m
Span:
6.1
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Zoomlion
Model Number:
qy30v532
Certification:
ISO/CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
nude package
Port
Shanghai port, any china port
Lead Time :
7~15 days

Contact

Selina Jiang
Sales Manager

Email: selina@evangelchina.com
Mobile: +86-159-214-12075(What’s app and Viber are available.)

Skype: live:selina_jiang5



Evangel Industrial (Shanghai) Co., Ltd.

Evangel International Machinery Ltd.

Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109-810
Fax: +86-21-62120109

Web: www.evangelchina.com

Web: www.evcrane.com

Alibaba: http://evangelchina.en.alibaba.com
Made-In-China: http://evangelchina.en.made-in-china.com

 www.facebook.com/evangelchina



Product Description

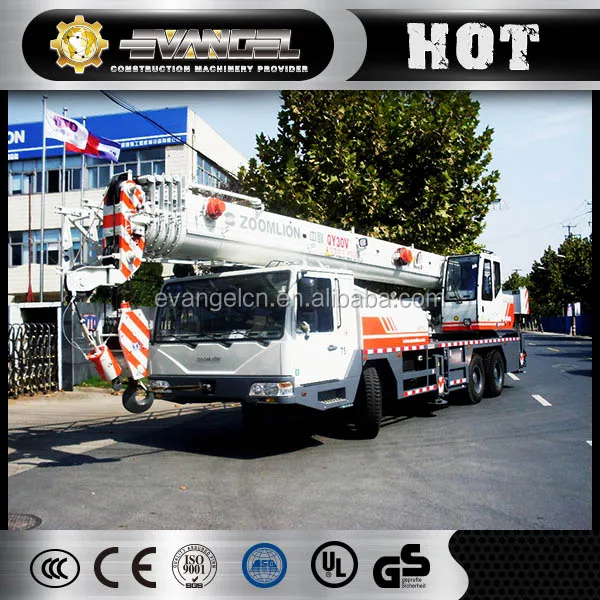

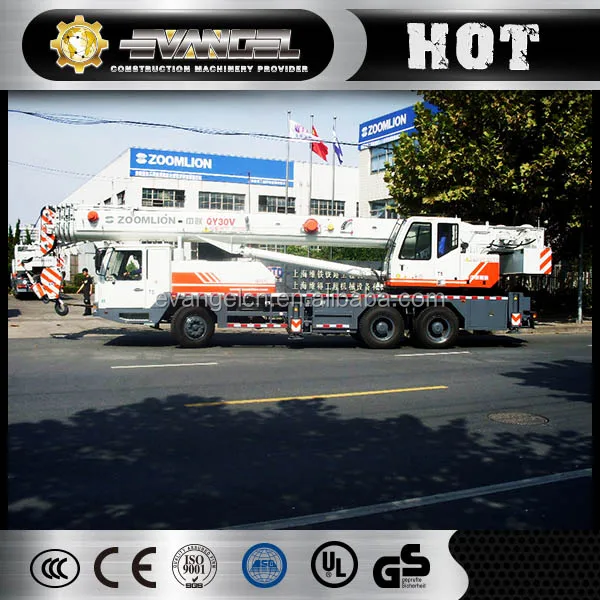

                        zoomlion 30t truck crane machine /pickup truck crane



Main parameter



Item

Value

Remarks

Working performance specification

Max. rated total lifting capacity        kg

30000



Max. load moment of basic boom    kN.m

1132



Max. load moment with max. main boom length                          kN.m

588



Max. lifting height of basic boom         m

11.1



Max. lifting height of main boom         m

40.5

Deformation of boom is not taken into consideration.

Max. lifting height of fly jib             m

49

Working speed

Max. speed of single rope on main winch m/min

120

The 4th layer of drum

Max. speed of single rope on  auxiliary winch m/min

77

The 2nd layer of drum

Derricking time of boom                s

45



Telescopic time of boom                s

85



Slewing speed                     r/min

02.2



Traveling specification

Max. traveling speed                km/h

78



Max. gradeability                     %

37



Min. turning circle diameter             m

22



Min. ground clearance                mm

220



Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005 (Stage)

Oil consumption per hundred kilometers            L

45



Mass specification

Deadweight of crane in traveling condition   kg

31830



Complete vehicle kerb mass             kg

31700



Front axle load                      kg

6990



Rear axle load                      kg

24840



Dimension specification

Overall dimensions (L×W×H)         mm

13000×2500×3400



Base on outriggers                    m

5.36



Distance between outriggers             m

6.1



Main boom length                     m

10.640.0



Main boom angle                      °

-280



Fly jib length                         m

8



Offset angle of fly jib                   °

0 , 30



Chassis

Model

ZLJ5323

Feature NoZLJ5323V3.2

ZLJ5323V3.3T

Class

II



Engine

Model

WP10.270

 QSC 260



Rated power         kW/r/min

199/2200

194/2200

Max. output torque   N.m/r/min

1100/13001600

1180/1500

Manufacturer

Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.
